Vital Signs 12.1 Inch Portable Monitor Patient Monitor Yonker Multiparameter Monitor Veterinary Factory

1 Unit
MOQ
$380.00(1 - 5 Units) $350.00(6 - 10 Units) $320.00(11 - 15 Units) $300.00(>=16 Units)
Prijs
Vital Signs 12.1 Inch Portable Monitor Patient Monitor Yonker Multiparameter Monitor Veterinary Factory
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Model Number: VM12
Properties: Obstetric Appliances, Diagnosis & Injection
Display size: 12.1 inch
Optional parameter: ETCO2, IBP
Parameter: Spo2,nibp,Resp,ECG,temp, PR
Product name: Veterinary monitor
Size: 303mm*160mm*287mm
Shelf Life: 5 years
After-sale Service: Online technical support
Warranty: 1 Year
Working temperature environment: 0 - 40 ℃
Basis informatie
Model Number: VM12
Betalen & Verzenden Algemene voorwaarden
Productomschrijving
Intended use:

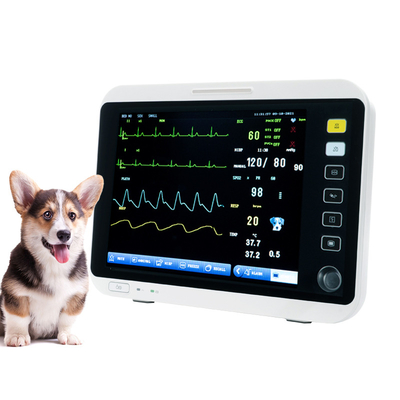

12.1-inch high-resolution color TET LCD display. Thinner and lighter in design, convenient and portable for users. Real-time S-T segment analysis, pacemaker detection. Various interfaces: standard screen, trend screen, oxy CRG screen, NIBP list screen, big front screen. 3-level audio/visual alarms. Efficient resistance to interference of defibrillator and HF knife. Up to 400 groups NIBP list, 6000seconds, ECG waveform recall, 60 alarm event records recall, 7-day trend chart in storage. Built-in rechargeable lithium battery, 2-hour working capability. Wireless central monitoring system applicable to ICU/CCU/OR
Size: 12 * 11.4 * 6.4 inch Weight: 5kg Electrical Specification: 100-240v AC, 50/60Hz, Max Input Power: 70VA Battery: 11.1V 2200mAh rechargeable lithium battery Standard configuration: SpO2, PR, NIBP, ECG, RESP, TEMP Optional Configuration: Nellcor SpO2, 2-IBP, ETCO2, Touch screen, Built-in Thermal Printer Package Include: 1 x device 1 x Li-Battery 1 x Power line 1 x Earth wire 1 x User’s Manual 1 x Blood oxygen probe (for SpO2, PR) 1 x Blood pressure cuff (for NIBP) 1 x ECG cable (for ECG, RESP) 1 x Temperature probe (for Temperature)
ECG

Input
3/5 wire ECG cable
Lead section
I II III aVR, aVL, aVF, V
Gain selection
*0.25, *0.5, *1, *2, Auto
Sweep speed
6.25mm/s, 12.5mm/s, 25mm/s, 50mm/s
Heart rate range
15-30bpm
Calibration
±1mv
Accuracy
±1bpm or ±1% (select the bigger data)
NIBP

Test method
Oscillometer
Philosophy
Adult, Pediatric and Neonate
Measurement type
Systolic Diastolic Mean
Measurement parameter
Automatic, Continuous measurement
Measurement method Manual
mmHg or ±2%
SPO2

Display Type
Waveform, Data
Measurement range
0-100%
Accuracy
±2% (between 70%-100%)
Pulse rate range
20-300bpm
Accuracy
±1bpm or ±2% (select the bigger data)
Resolution
1bpm
2-Temperature (Rectal & Surface)

Number of channels
2 channels
Measurement range
0-50℃
Accuracy
±0.1℃
Display
T1, T2, ☒T
Unit
ºC/ºF selection
Refresh cycle
1s-2s
Respiration (Impedance & Nasal Tube)

Measurement type
0-150rpm
Accuracy
±1bm or ±5%, select the bigger data
Resolution
1rpm
Packing Information

Packing size
37*37*28cm
N.W.
6kg
G.W.
7kg
