Thuis /Producten/Ziekenwagen geduldige monitor/Acrylic ECG First Aid Portable Multi Parameter Devices Patient Monitor For Ambulance Bedside Patient Monitor

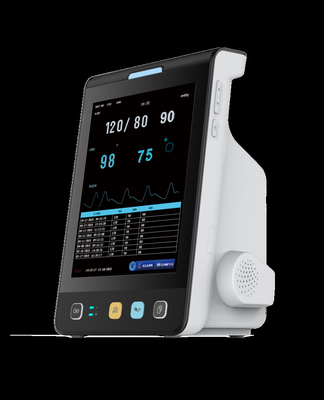

Acrylic ECG First Aid Portable Multi Parameter Devices Patient Monitor For Ambulance Bedside Patient Monitor

1.0 Units
MOQ
Acrylic ECG First Aid Portable Multi Parameter Devices Patient Monitor For Ambulance Bedside Patient Monitor
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Model Number: IE8
Power Source: Electric
Warranty: 1 Year, 1 YEAR
After-sale Service: Online technical support
Material: Acrylic, Metal, Plastic
Shelf Life: 1years
Quality Certification: CE ISO CFS
Instrument classification: Class II
Safety standard: GB9706.1
brand name: yonker
Product name: multi parameter patient monitor
Size: 214*157*238mm
bare weight: 2kg
Certificate: CE ISO CFS
Type: IE8
Power supply: electric
Basis informatie
Certificering: CE ISO CFS, CE ISO CFS
Model Number: IE8
Betalen & Verzenden Algemene voorwaarden
Productomschrijving
Intended use:
12.1-inch high-resolution color TET LCD display. Thinner and lighter in design, convenient and portable for users. Real-time S-T segment analysis, pacemaker detection. Various interfaces: standard screen, trend screen, oxy CRG screen, NIBP list screen, big front screen. 3-level audio/visual alarms. Efficient resistance to interference of defibrillator and HF knife. Up to 400 groups NIBP list, 6000seconds, ECG waveform recall, 60 alarm event records recall, 7-day trend chart in storage. Built-in rechargeable lithium battery, 2-hour working capability. Wireless central monitoring system applicable to ICU/CCU/OR
Weight: 2.5kg Electrical Specification: 100-240v AC, 50/60Hz, Max Input Power: 70VA Battery: 11.1V 2200mAh rechargeable lithium battery Standard configuration: SpO2, PR, NIBP, ECG, RESP, TEMP Optional Configuration: Nellcor SpO2, 2-IBP, ETCO2, Touch screen, Built-in Thermal Printer Package Include: 1 x device 1 x Li-Battery 1 x Power line 1 x Earth wire 1 x User’s Manual 1 x Blood oxygen probe (for SpO2, PR) 1 x Blood pressure cuff (for NIBP) 1 x ECG cable (for ECG, RESP) 1 x Temperature probe (for Temperature)
ECG

Input
3/5 wire ECG cable
Lead section
I II III aVR, aVL, aVF, V
Gain selection
*0.25, *0.5, *1, *2, Auto
Sweep speed
6.25mm/s, 12.5mm/s, 25mm/s, 50mm/s
Heart rate range
15-30bpm
Calibration
±1mv
Accuracy
±1bpm or ±1% (select the bigger data)
NIBP

Test method
Oscillometer
Philosophy
Adult, Pediatric and Neonate
Measurement type
Systolic Diastolic Mean
Measurement parameter
Automatic, Continuous measurement
Measurement method Manual
mmHg or ±2%
SPO2

Display Type
Waveform, Data
Measurement range
0-100%
Accuracy
±2% (between 70%-100%)
Pulse rate range
20-300bpm
Accuracy
±1bpm or ±2% (select the bigger data)
Resolution
1bpm
2-Temperature (Rectal & Surface)

Number of channels
2 channels
Measurement range
0-50℃
Accuracy
±0.1℃
Display
T1, T2, ☒T
Unit
ºC/ºF selection
Refresh cycle
1s-2s
Respiration (Impedance & Nasal Tube)

Measurement type
0-150rpm
Accuracy
±1bm or ±5%, select the bigger data
Resolution
1rpm
Packing Information

Packing size
38*35*30cm
N.W.
2.5kg
G.W.
4.3kg
