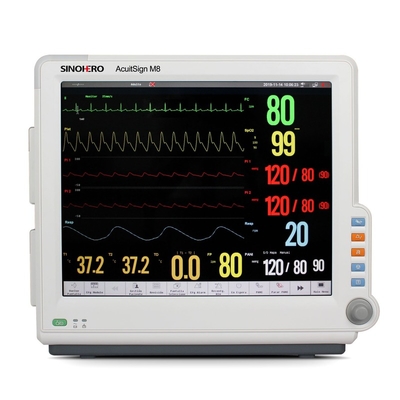

Plastic High Quality CE Certificated 17" Display Medical Portable Icu Bedside Monitor Multipara Patient Monitor

Main Unit: Mainunit Display: 17" Anti-glare TFT-LCD Display for M8 Touch Screen: Full-touch screen option for M8 13 Touch buttons standard for M8 Other Option Modules BIS Module, CO Module, AG/Multi-gas Module, ICG Module, IBP Module, TEMP Module, Mainstream EtCO2 Module, Sidestream EtCO2 Module, Microstream EtCO2 Module, Nellcor SpO2 Module, Masimo SpO2 Module EMS/MMS Module List: NO. RESP 2-TEMP NIBP SpO2 Nellcor SpO2 Masimo SpO2 3/5 lead ECG 12 lead ECG 2-IBP EMS/MMS1 √ √ √ √ √ √ EMS/MMS2 √ √ √ √ √ √ EMS/MMS3 √ √ √ √ √ EMS/MMS4 √ √ √ √ √ EMS/MMS5 √ √ √ √ √ √ EMS/MMS6 √ √ √ √ √ √ EMS/MMS7 √ √ √ √ √ EMS/MMS8 √ √ √ √ √ EMS/MMS9 √ √ √ √ √ √ EMS/MMS10 √ √ √ √ √ √ EMS/MMS11 √ √ √ √ √ EMS/MMS12 √ √ √ √ √ ● Technical Specifications Display: -17〞Color Anti-glare TFT-LCD -Resolution:1280×1024 pixels Alarm: -Level: Low, medium and high -Indication: Auditory and visual -Patient Physiological Alarm Light color: Yellow & Red: -Equipment Technical Alarm Light color: Blue -Supports Pitch Tone and multi-level volume; -Supports custom arrhythmia tone Input device: -Touch button: standard config, support operation of shortcut menu. -knob: standard config -Mouse input: Support -Keyboard input: Support System Output & Extensible Interfaces: -Ethernet Network:2 Standard RJ45 socket -Defibrillation Output:1 RJ11 socket -Nurse Call:1 BNC socket -Video Output:1 DVI port,1VGA port -USB1.1 port:6 -Auxiliary Module Rack connector.1 -SD memory card:2G (standard config) -Analog Output(ECG or IBP):Option Trend & Reviewing: -Trend:168 hours -NIBP measurement reviewing:1000 groups -ARR event:128 groups of ARR event and the associated waveform -Alarm events:128 groups of parameter alarm events and associated parameter -Waveform at the alarm moment Holographic waveform: The storage time depends on the stored waveforms and the quantity of them. Power supply: -Power Voltage: AC 100-240V 50/60Hz -Power Input: ≦150VA -Input Current:1.7～0.8V -Safety class: Category I Battery: -Type: Rechargeable Lithium battery,11.1V/4.0AH -Operating time under the normal use and full charge:≧60minutes (2 batteries for 120 minutes) Recorder -Method: Thermal dot array -Paper width:50mm(1.97 in) -Paper length:15m -Paper Speed:12.5/25/50(mm/sec) -Traces: Maximum 3 tracks -Recording way: Real-time recording, Periodic recording, Alarm recording ECG: -Lead Mode:3-leads ECG input 5-leads ECG input 12-leads ECG input -Lead selection:Ⅰ,Ⅱ,Ⅲ Ⅰ,Ⅱ,Ⅲ,aVR,aVL,aVF,V- Ⅰ,Ⅱ,Ⅲ, aVR,aVL,aVF,V1～V6(option) -Gain: 2.5mm/mV(×0.25), 5mm/mV(×0.5), 10mm/mV(×1), 20mm/mV(×2), 40mm/mV(×4),Auto -CMRR: Monitor mode≧105dB Surgery mode≦105dB Diagnostic mode≧90dB -Frequency response(-3d B):Monitor mode 0.5～40Hz Surgery mode 1～25Hz Diagnostic mode 0.05~150Hz -input impedance: ≧5.0Mohm -ECG signal range:±10.0mV -Electrode offset potential: ±500mV -Patient Leakage Current:<10uA -Standardizing signal:1mV±5% -Baseline recovery:<5s after Defibrillation.(Mon or Surg mode) -Indication of electrode separation: Every electrode(exclusive of RL) -Protection: Breakdown Voltage 4000AVC 50/60Hz;defibrillator proof -Sweep speed:12.5mm/s,25mm/s,50mm/s HR: -Range: Adult 10～300bpm Pediatric & Neonate:10～350bpm -Refreshing time:≦50 bpm Per2 pulses 50～120bpm per 4 pulses ≧120bpm per 6 pulses -Resolution: 1bpm -Accuracy: ±1% or ±1bpm,whichever is greater ST segment -Measurement range:-2.0mV～2.0mV -Accuracy:-0.8mV~0.8mV: ±0.02mV or ±10% whichever is greater Over ±0.8mV:unspecified -Resolution:0.01mV RESP : -Method: Thoracic impedance -Lead Selected from:Ⅰ(RA-LA)orⅡ(RA-LL);Default:Ⅰ -Gain: ×0.25, ×1, ×2, ×4 -Bandwidth:0.25Hz to 2.0Hz (-3dB) -Sweep Speed: 6.25mm/s,12.5mm/s,25mm/s -Measurement Range:0～150 rpm -Resolution: 1rpm -Accuracy: ±2rpm or 2% whichever is greater -Delay of Apnea Alarm:10s,15s,25s,30s,35s,40s,45s,50s,55s,60s NIBP : -Way of measurement: Automatic oscillometry -Range of measurement: Adult: SYS 30～270mmHg DIA 10～220mmHg MAP 20～235mmHg Child: SYS 30～235mmHg DIA 10～220mmHg MAP 20～225mmHg Neonate:SYS 30～135mmHg DIA 10～100mmHg MAP 20～125mmHg -Cuff pressure range:0～300mmHg -Resolution:1mmHg -Pressure Accuracy: Static:±2% or ±3mmHg,whichecer is greater Clinical: ±5mmHg average error Standard deviation:≦8mmHg -Unit: mmHg, kPa -Measurement mode: Manual, Auto, STAT -Intervals for AUTO measurement time:1,2,3,4,5,10,15,30,60,90 minutes; 2,4,8,12hours -STAT mode cycle time: keep 5 minutes, at 5 seconds interval. -Overpressure Protection: Hardware and software double protections -Pulse rate ran
