CE ISO Plastic CE Certified Hospital Vital Signs Monitor Handheld Portable CE ISO ME Multipara Handheld Patient Monitor

2.0 Pieces
MOQ
CE ISO Plastic CE Certified Hospital Vital Signs Monitor Handheld Portable CE ISO ME Multipara Handheld Patient Monitor
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Model Number: ME
Power Source: Electricity
Warranty: 1 Year
After-sale Service: Online technical support
Material: Plastic
Shelf Life: 1years
Quality Certification: ce
Instrument classification: Class II
Safety standard: EN 149 -2001+A1-2009
Product name: Transport Monitor
Model: XO
Screen Size: 4.3"
Touch Screen(Yes/No): Yes
Certificate: CE ISO
Basis informatie
Certificering: ce, CE ISO
Model Number: ME, XO
Betalen & Verzenden Algemene voorwaarden
Packaging Details: 1 ME patient transfer Monitor 1 Adult Reusable Finger clip SpO2 Sensor 1 ECG 5-Lead Cable, Snap End, IEC Standard 1 Adult Reusable NIBP Cuff 1 Adult Reusable NIBP Tube 1 Adult Reusable Skin Temperature Probe 10 Disposable ECG Electrodes 1 Power Cable
Productomschrijving
Product Description
CE ISO Ce Certified Hospital Handheld Vital Signs Monitor Portable ME Handheld Multipara Patient Monitor

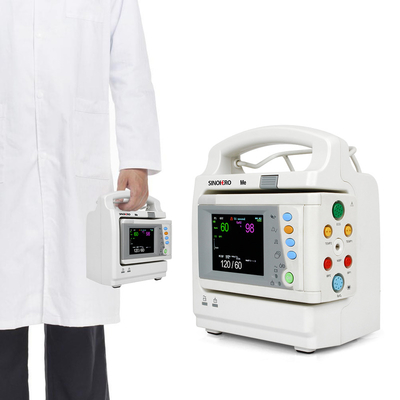

● Introduction: ME is a High Acuity 3.5" Multi-Parameter Transport Modular Patient transfer Monitor, which can offer multiple parameter modules to choose from, adapting to the flexible parameter combination requirements in high acuity applications. With its plug-and-play modules, our modular patient monitor is able to monitor a wide range of parameters simultaneously, such as ECG, RESP, SpO2, NIBP, 2 TEMP. It integrates parameter measuring module call EMS3 with full touch display and recorder in one device to form a compact and portable device. At the same time, with its built-in replaceable battery delivering anuninterrupted monitoring during patient transfer.

● Application:
It suitable for bedside, operation room, ICU, CCU etc.

● Feature: Innovative Stand design working with EMS to deliver best care in any challenging, fast-paced environment Compact monitor with 3.5" Full-touch TFT-LCD display and automatic re-orientation feature Ergonomic handle with 12V DC power for fast ER and transport monitoring Various parameter configurations enable continuous multi-functional patient monitoring Lasting more than 60 minutes as independent monitor with built-in rechargeable Li-ion battery
Performance
Size and Weight - Size:160mmx99mmx71mm - Weight: < 1.2kg Power supply - Power Voltage: AC 100-240V 50/60Hz - Safety class: Category I - 12V DC input Display - 3.5" Color Anti-glare Full-touchTFT-LCD - Resolution:320x240pixels - Built-in Gravity sensor Battery - Type: Rechargeable Lithium battery,3.7V/1800mAH - Operating time under the normal use and full charge: >60minutes Alarm - Level: Low, medium and high - Indication: Auditory and visual - Patient Physiological Alarm Light color: Yellow & Red - Equipment Technical Alarm Light color: Blue Input device - Touch screen: Standard configuration - Shortcut Keys: 5 Trend & Reviewing - Trend:8 hours power-off storage - NIBP measurement reviewing:400 groups Environment - Operating temperature: +5℃ to +40℃ - Storage temperature: -20℃ to +50℃ - Operating humisity: 15% to 85% (non condensing) - Storage humidity: 10% to 93% (non condensing) - Operating atmospheric pressure: 860hPa to 1060hPa - Storage atmospheric pressure: 500hPa to 1060hPa ECG - Lead Mode: 3-leads ECG input 5-leads ECG input 12-leads ECG input - Lead selection: Ⅰ,Ⅱ,Ⅲ, Ⅰ,Ⅱ,Ⅲ,aVR,aVL,aVF,V- Ⅰ,Ⅱ,Ⅲ, aVR,aVL,aVF,V1~V6(option) - Gain: 1.25mm/mV(x0.125)2.5mm/mV(x0.25), 5mm/mV(x0.5), 10mm/mV(x1), 20mm/mV(x2), Auto - CMRR: Monitor mode≧105dB Surgery mode≦105dB Diagnostic mode≧90dB - Frequency response(-3d B): Monitor mode 0.5~40Hz Surgery mode 1~25Hz Diagnostic mode 0.05~150Hz - Input impedance: ≧5.0Mohm - ECG signal range:±10.0mV - Electrode offset potential: ±500mV - Patient Leakage Current:<10uA - Standardizing signal:1mV±5% - Baseline recovery: <3s after Defibrillation (Monitor mode) <1s after Defibrillation (Surgery mode) - Indication of electrode separation: Every electrode(exclusive of RL) - Protection: Breakdown Voltage 4000AVC 50/60Hz;defibrillator proof - Sweep speed:12.5mm/s,25mm/s,50mm/s HR - Range: Adult 10~300bpm Pediatric & Neonate: 10~350bpm - Resolution: 1bpm - Accuracy: ±1% or ±1bpm,whichever is greater ST segment - Measurement range:-2.0mV-2.0mV - Accuracy: -0.8mV-0.8mV: ±0.02mV or ±10% whichever is greater Over ±0.8mV: unspecified - Resolution:0.01mV RESP - Method: Thoracic impedance - Lead Selected from: Ⅰ(RA-LA)orⅡ(RA-LL);Default: Ⅱ - Gain: x0.25, x1, x2, x4 - Bandwidth:0.25Hz to 2.0Hz (-3dB) - Sweep Speed: 6.25mm/s,12.5mm/s,25mm/s - Measurement Range:0~150 rpm - Resolution: 1rpm - Accuracy: ±2rpm or 2% whichever is greater - Delay of Apnea Alarm: off, 10s,15s,25s,30s,35s,40s,45s,50s,55s,60s NIBP - Way of measurement: Automatic oscillometr - Range of measurement: Adult: SYS 30~270mmHg DIA 10~220mmHg MAP 20~235mmHg Child: SYS 30~235mmHg DIA 10~220mmHg MAP 20~225mmHg Neonate: SYS 30~135mmHg DIA 10~100mmHg MAP 20~125mmHg - Cuff pressure range: 0~300mmHg - Resolution:1mmHg - Pressure Accuracy: Static:±2% or ±3mmHg,whichever is greater Clinical: ±5mmHg average error Standard deviation:<8mmHg - Unit mmHg, kPa - Measurement mode: Manual, Auto, STAT - Intervals for AUTO measurement time:1,2,3,4,5,10,15,30,60,90 minutes; 2,4,8,12 hours - STAT mode cycle time: keep 5 minutes, at 5 seconds interval. - Overpressure Protection: Hardware and software double protections - Pulse rate range:40~240bpm Digital SpO2 - Measurement Range:0~100% - Resolution:1% - Accuracy: At70~100%,±2% At0~69%,unspecified PR - Measurement Range:25~255bpm - Resolution:1bpm - Accuracy: ±1% or ±1 bpm,whichever is greater Nellcor SpO2 - Measurement Range:0~100% - Resolution:1% - Accuracy:At70~100%:±2%(Adult) At70~100%:±3%(Neonate) At70~100%:±2%(Low Perfusion) At0~69%,unspecified PR - Measurement Range:20~300bpm - Resolution:1bpm - Accuracy: 20bpm to 250bpm: ±3bpm 251bpm to 300bpm: unspecified Physical Identity: Environment Operating temperature:0~+40℃ Storage temperature:-20℃ to +50℃ Operating humisity:15% to 85%(non condensing) Storage humidity :10% to 93%(non condensing) Operating atmospheric pressure:860hPa to 1060hPa Storage atmospheric pressure:500hPa to 1060hPa
Safety: IEC60601-1 Approved, CE marking according to MDD93/42/EEC
Recommend Products

NEC8

Finger Pulse Oximeter
· Integrated with SpO2 probe and processing display module · Small in volume, light in weight and convenient in carrying · Operation of the product is simple, low power consumption · SpO2 value display · Pulse rate value display, bar graph display · Pulse waveform display · The display mode can be changed

SE1208

12-Channel ECG Machine * Splendid 10” color TFT with Alpha-numeric keyboard *Simultaneous 12 leads of ECG printing(Roll or Z-fold) *Multiple USB port for connecting PC-ECG software and external printer * Excellent ECG auto-interpretation program and Pacemaker detection * Reliable and fas Network Connectivity and data transmission

JRT200

Thermometer
* LCD display
* Adopts the latest infrared technology
* Non-contact design
* High temp alarm
* Double mode, can be used to measure the temperature of human body and object surface.
* Just 1 second can measure out the body temperature,Fast & accurate reading within 1 second.
Packing & Delivery
Size and Weight Product size:16*9.9*7.1cm

Packing size: 43*40*30cm
Net weight: 4kg
Gross weight: 5kg

Package included: 1 ME patient transfer Monitor 1 Adult Reusable Finger clip SpO2 Sensor 1 ECG 5-Lead Cable, Snap End, IEC Standard 1 Adult Reusable NIBP Cuff 1 Adult Reusable NIBP Tube 1 Adult Reusable Skin Temperature Probe 10 Disposable ECG Electrodes 1 Power Cable Optional: 12-lead ECG, 2TEMP, 2IBP, EMS Chareging Stand etc......
