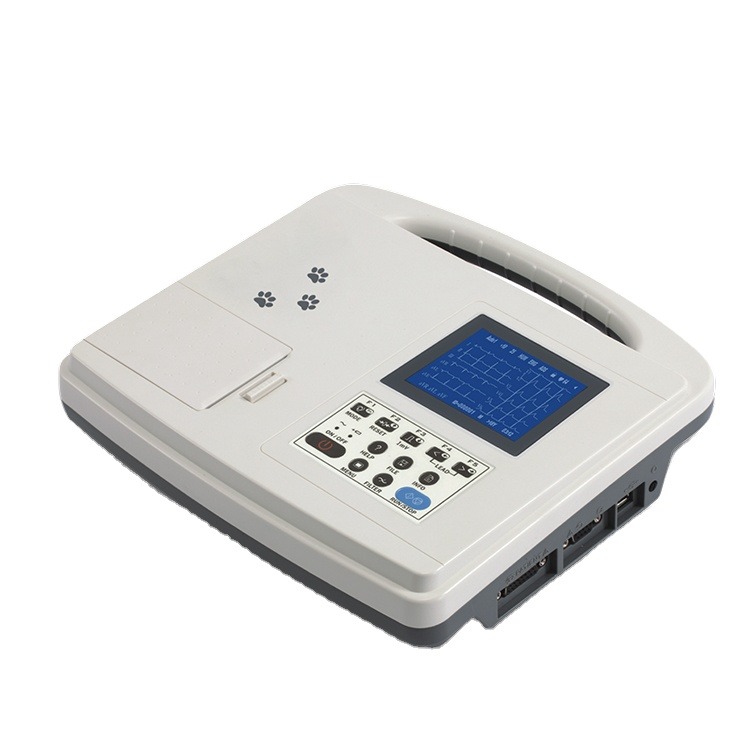

Single Channel Standard High Quality Portable Electrocardiograph 12 Lead ECG Machine

1.0 Units
MOQ
Single Channel Standard High Quality Portable Electrocardiograph 12 Lead ECG Machine
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Model Number: ECG-100G
Power Source: Electric
Warranty: 1 Year
After-sale Service: Return and Replacement
Material: standard
Shelf Life: 1years
Quality Certification: ce
Instrument classification: Class II
Safety standard: None
Product Name: 12 lead Single Channel Electrocardiograph Portable ECG machine
Display: 3.5 inch high resolution LCD display
Power supply: 110/220V, 50/60Hz
Safety Standard: IEC Class I, type CF
Recording Paper: 50mm(width), 20m/30m(length), roll paper
Paper Speed: 5/6.25/10/12.5/25/50mm/s
Patient Current Leakage: <10uA
Dimension: 295mmX260mmX60mm; 415mmX195mmX380mm(Carton)
Gross weight: 4.3kgs
Net weight: 2.3kgs
Basis informatie
Certificering: ce
Model Number: ECG-100G
Betalen & Verzenden Algemene voorwaarden
Productomschrijving

Single Channel Electrocardiograph Portable ECG machine

Product Description
Features
Features
1
Vehicle Charger Supported
2
12-lead simultaneous acquisition
3
Powerful digital filters: HUM,EMG,ADS,Low pass
4
Detection and alarm on lead-off and low battery capacity
5
Automatic adjustment of baseline for optimal printing
6
Data management software on PC (Optional)
7
12 ECG files can be save in the ECG (Optional function only for ECG-1101G)
8
250 ECG files can be save to SD card (Optional function only for ECG-1101G)
9
Reliable automatic measurement & Interpretation tested with CSE&AHA database
Technical Specifications
Safety Standard
IEC Class I, type CF
Acquisition Mode
12 lead acquisition simultaneously
Input Circuit
Floating, protection against defibrillator and pacemaker
A/D Converter
12 bit
Time Constant
≥3.2s
Frequency Response
0.05Hz ～ 165Hz
Sensitivity
2.5, 5, 10, 20, 40 (mm/mV), Auto
Input Impedance
≥50MO
Input Circuit Current
≤50nA
Calibration Voltage
Calibration Voltage
Noise Level
<15µVp-p
Anti Baseline Drift
Automatic
Filter
EMG ,HUM,ADS,Lowpass.ESU,Defibrillator
CMRR
>100dB(with AC filter )
Patient Current Leakage
<10µA
Paper Speed
5/6.25/10/12.5/25/50mm/s
Recording Paper
50mm(width), 20m/30m(length), roll paper
Power Supply
AC: 110/220V, 50/60Hz
DC: 12V, built-in rechargeable lithium battery
Dimension
295mm×260mm×60mm;
415mm×195mm×380mm(Carton)
Weight
2.3kgs(N,W) 4.3kgs(G.W)
Packing&Shipping
Package:
Pack with standard cartons to promise the intact of the goods during shipment.

Shipping:
Deliver by air or by express or by sea,the delivery time is around 7-15days after receiving the payment,it is depends on the order exactly.
Company Introduction
Jiangsu Anesthesia Medical is now one of the biggest and most competitive medical supplier based in Nanjing city of Jiangsu province cooperated with his parent’s company Beijing anesthesia medical which is manufacturer for medical equipment ,medical disposable home care products over 10 years .We are supplying to different medical items like patient monitors,pulse oximeters ,blood pressure monitor ,ECG machine, infusion pump ,syringe pump,ultrasound machine ,Fetal doppler,Capnography,Central venous catheter ,Hemodialysis catheter ,Blood pressure transducer Disposable infusion pump ,Et tube ,Spinal needle,foley catheter ….Cardiac catheters like Guiding catheter ,Angio catheter and so on to more 30 countries.
In last three years ,we have been exporting more than 6 millions USD to our clients with good quality items and good delivery time .We have been cooperating with 50 qualified manufacturers in china with CE approved besides our own manufacturing factories .We also can accept OEM and ODM business from all clients In next few years ,we aim at supplying more and more quality medical products with best price to our clients from different countries.

Our Services & Strength

1. Offer 24 hours on-line service;
2. Offer OEM & ODM serttomized logo, package, any of your i dea we can help to design;
3. Professional manufacturer with more than 12 years experience;
4. High qulaity, reasonable & competitive price, delievery on time;
5. CE & ISO certification.
Exhibition
Contact Details
Contact Name:Sally Xiong
Email:sally@anesthesiamed.com
Whatsapp&Wechat&Skype:0086 13926450860
Mobile:0086 13926450860/15380840860
QQ:632794456
FAQ
Q: Areyou trading company or manufacturer ?
A: We are both manufacture and trading company, we have two factories in Beijing and Nanjing.
Q: How long is your delivery time?
A: Generally 3-7 days after receive receipt, 7-15 days for large quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the samples, free or charge depend on customers and products.
Q: What is your terms of payment ?
A: 100% in advance or deposit in advance,balance before delivery.
Q: Can you print customers' logo on products?
A: Yes, we offer OEM & ODM customized logo and package, we can also help to design.
