Thuis /Producten/Draagbare patiëntmonitor/Portable Animal Multiparameter Patient Monitor 15 Inch Animal Multiparameter Patient Monitor

Portable Animal Multiparameter Patient Monitor 15 Inch Animal Multiparameter Patient Monitor

1 unit
MOQ
Portable Animal Multiparameter Patient Monitor 15 Inch Animal Multiparameter Patient Monitor
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Model Number: DJ-12L
Properties: Veterinary Patient Monitor
Product name: Animal multi-parameter patient monitor
Application: Animal Hospital
Parameter: ECG, NIBP, SPO2, TEMP, RESP, Pulse rate
Feature: Portable
Display: 15' Color TFT LCD Screen
language: Optional Chinese, English, French
The color of the shell: White
Printer: Optional printer
OEM/ODM: Warmly Welcomed
Warranty: 1 Year
Basis informatie
Model Number: DJ-12L
Betalen & Verzenden Algemene voorwaarden
Packaging Details: Carton packing. Carton 51*48*35, GW: 7 kg. There are aseismatic pearl cotton foam in the carton. The machine and accessories are packed in plastic bags. A cardboard is inserted in front of the machine to protect the screen. There are Operator's Manual in t
Supply Ability: 1000 Unit/Units per Month
Productomschrijving
Product Description

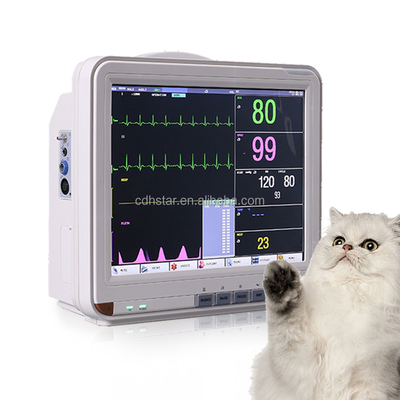

The DJ-12L Multi-parameter Monitors is a portable veterinary monitor with 15 inches display screen. It has a sophisticated design that provides simple, user-friendly operation. Its advanced functionality makes it perfect for a wide variety of uses, optional recorder, ETCO2, etc.
Product name
DJ-12L Veterinary Monitor
Parameter
ECG, NIBP, SPO2, TEMP, RESP, Pulse rate
Screen
15' Color TFT LCD
Battery
Built-in lead-acid battery, Standby time 6 hours. Optional lithium battery, 1 hour.
Dimension
370(W)*340(H)*160(D)mm
Recorder
Optional
Direction for use
The 15 inches TFT display screen could show up to 6 waveforms simultaneously.
The complete set is portable with built-in rechargeable battery.
Operated by turning mouse, thus can be handled easily and conveniently.
Complete monitor parameters: ECG, RESP, SPO2, NIBP, PR, TEMP.
Trend chart for 150 hours with all parameters and support playback of ECG.
Sound and light alarm.
Built-in recorder and various record modes are available (the optional install).

  • Description of application effect

Measures: ECG (5 lead), Respiration, NIBP, SpO2, Heart rate, Temperature.
Lightweight: Weighing 6 kg, Size: (H x W x D) 370 mm x 340 mm x 160 mm ( 14.6" x13.4"x6.3"). The DJ-12L is portable type.
Battery: Operation for Portability, available with rechargeable batteries.
Wide Viewing Angle: The LCD screen features a wide viewing angle. Each parameter is color-coded in bright and vivid
colors, making the information easy to read even from a distance.
Trend: The monitor can storage 150 hours trend data of the whole monitored parameters.
Recorder: Recorder could be optional install.
Detailed Images
System Output:
Display Type: 15 inches LCD with TFT 1024×768
Trand diagram: 150 hours
Recorder: Recorder could be optional install

Power Supply:
AC220V±22V, 50Hz±1Hz
Protection Degree: Class II,Type BF
Size Information
Size Chart of This Design
Dimension
 Length
Thickness
Height
Product
37
16
34
Packing
51

35
48
Packing&Shipping
Carton packing. Carton 51*48*35, GW: 7 kg.
There are aseismatic pearl cotton foam in the carton. The machine and accessories are packed in plastic bags. A cardboard is inserted in front of the machine to protect the screen. There are Operator’s Manual in the carton. Finally, the
carton is wrapped with bubble film for double shock protection.
After Sales Service
Product warranty for one year, life-long maintenance , online technical support.
Company Introduction
HSTAR Instruments Chengdu co., Ltd was founded in 2002 in Chengdu , China. We are manufacturer of medical devices. We provide Patient monitor, Pulse oximeter, ECG machine, and various related accessories & consumable material. Medical, household and veterinary products are produced.
We expect to continue to introduce new products to broaden our market reach. We could also provide OEM, ODM cooperation programs.
In China, we have provided products for many hospitals, clinics, and healthcare institutions. In foreign markets, our products have been sold to nearly 50 countries and regions such as Afghanistan, Bangladesh, Bolivia, Chile, Coate d'Ivoire, Congo, Ecuador, Egypt, England, Ethiopia, Germany, Georgia, Ghana, Haiti, Hongkong, India, Indonesia, Iran, Iraq, Jordan, Kenya, Libya, Malaysia, Mexico, Mongolia, Nepal, Nigeria, Pakistan, Panama, Philippines, Russia, Senegal, South Africa, South Korea, Sultan, Syria, Taiwan, Thailand, Trinidad and Tobago, Tunisia, Turkey, Uganda, United Arab Emirates, USA, Uzbekistan, Vietnam, Zambia, etc.
We hope to establish friendly business relationship with more friends all over the world.

Our Services & Strength

We have the ability to develop software and hardware independently. We have our own production line and necessary inspection equipment. Product warranty for one year, life-long maintenance.
FAQ
How many parameters can this monitor measure?
Answer: It can measure 6 parameters: ECG, NIBP, SPO2, TEMP, RESP, Pulse rate.

What screen does the monitor use?
Answer: It is 15' Color TFT LCD.

What kind of storage battery does this monitor use?
Answer： Built-in lead-acid battery, Standby time 6 hours. Optional lithium battery, 1 hours..

Can this monitor print waveforms and data?
Answer : Built-in printing is an optional item. If you need to print waveforms and data, the price will increase by $40.

Is this monitor equipped with ETCO2?
Answer : ETCO2 is an optional item. If you need, the price will increase by $500.
