First Aid Devices Patient Monitor Mtouch8 Patient Monitor 6 Medical Parameters 12 Inch Ambulance First Aid Monitor

1.0 Pieces
MOQ
First Aid Devices Patient Monitor Mtouch8 Patient Monitor 6 Medical Parameters 12 Inch Ambulance First Aid Monitor
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Model Number: mTouch8
Power Source: Electricity
Warranty: 1 Year
After-sale Service: Online technical support
Material: Plastic
Shelf Life: 3 years
Quality Certification: ce
Instrument classification: Class II
Safety standard: EN 149 -2001+A1-2009
Type: Touch Screen Patient Monitor
Certificate: CE ISO
Model: Medical science Multi-parameter patient monitor
Standard parameters: ECG, SpO2 , NIBP, RESP, 2-Temp, PR
Display: 12.1" Color TFT-LED Anti-dazzling
Function: First-Aid Devices, Examination Therapy Equipments
ECG: 3 Leads /5 Leads/12 Leads
10.4" Color TFT-LED: 12.1" Color TFT-LED
Nellcor-SpO2 Measurement Range: 0~100%
Safety: IEC60601-1 Approved, CE marking according to MDD93/42/EEC
Basis informatie
Certificering: ce, CE ISO
Model Number: mTouch8, Medical science Multi-parameter patient monitor
Betalen & Verzenden Algemene voorwaarden
Packaging Details: Package included: 1 mTouch 8 Full Touch Screen Patient Monitor 1 Adult Reusable Finger clip SpO2 Sensor 1 SpO2 Extension Cable 1 ECG 5-Lead Cable 1 Adult Reusable NIBP Cuff 1 Adult Reusable NIBP Tube 1 Built-in Battery (Lithium battery) 10 ECG disposable
Supply Ability: 50000 Unit/Units per Month
Productomschrijving
Product Description
Icu Operating Room Multiparameter Patient Monitor Emergency Equipments Medical Cardiac Defibrillator With Vital Sign Monitor
● Introduction:

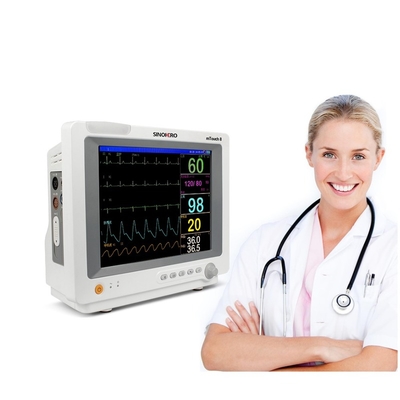

mTouch 8 is a High Acuity 12.1" Multi-Parameter Full Touch Screen Patient Monitor, Portable Patient Monitor Basic 6 parameters (ECG, RESP, NIBP, TEMP, RESP) to reach general clinical needs,Bright 12.1" TFT display, easy to view Arrhythmia and ST analysis to provide rapid cardiac diagnosis Up to 72-hour trend to review previous patient data Drug calculation and titration, useful clinical tools Application: It suitable for bedside, General Ward ,operation room, ICU, CCU etc.

Application:
It suitable for bedside, operation room, ICU, CCU etc.

● Feature:
1)12.1'' TFT color LCD FUll Touch Screen.
2)Fanless design, quiet, energy-saving and clean, which reduces the possibility of cross-infection.
3)All-round monitor for adult, pediatric and neonate.
4)With standard interface, oxygen graph, trend graph, big character interface and view bed, convenient to observe.
5)Finish all operations by keys and knobs.
6)Maximum 8-channel waveform synchronous display.
7)Display 7-lead ECG waveform on one screen, cascade ECG waveform display
8)Adopt digital SpO2 technology, anti-motion and anti-ambient light interference, and measurement can be performed under the
circumstance of weak filling.
9)Heart rate variability (HRV) analysis function
10)NIBP measurement mode: Manual/AUTO/STAT, storage for 4800-group NIBP data.
11)Review for 71 alarm events of all parameters and 60 arrhythmia alarm events.
12)Drug concentration calculation and titration table functions.
13)One-touch printing of trend graph
14)Connect to Central Monitoring System by 3G, Wi-Fi or wired mode.
15)AC/DC, built-in rechargeable lithium battery achieve uninterrupted monitoring.
16)Anti-high frequency surgical unit, defibrillation-proof (special leads are necessary).

Product name
Medical Equipment mTouch 8 Full Touch Screen Patient Monitor
Application
Hospital Clinic ICU CCU
Place of Origin
China
Brand Name
SINOHERO
Power Source
Electricity
After-sale Service
Online technical support
Material
ABS
Quality Certification
CE ISO
Instrument classification
Class II
Safety standard
EN 149 -2001+A1-2009
Display
12.1" TFT anti-dazzling High Resolution Display
Standard Parameters
ECG, RESP, SpO2, NIBP, and Dual-channel TEMP
ST segment range
1%~100%
Type
Operation room ICU CUU patient monitor
Power Voltage
AC 100-240V 50/60Hz
Safety class
Category I


● Performance:
Technical Specifications of iS10 Express
Display
- 12.1” color TFT Full Touch Screen
- Rolling and refreshing waveform display
- Resolution: 800×600

Multi displays
- Standard display
- Freeze display
- Large -font Display
- Trend coexist display
- Alarm limit display
- OxyCRG dynamic view display
- Bed-to-bed view display
- Multi-lead and ECG simultaneous display

Trace
- 12 waveforms
- Sweep Speed: 12.5mm/s, 25mm/s, 50mm/s

Indicator
- Power indicator light
- Battery indicator light

Inter Face
- Parameter cable inter face
- AC Power input socket
- Network inter face
- External VGA inter face for connection ofan
- Alternate Display

Battery
- Lithium-ion battery /Rechargeable
- Plug & Play battery, capacity:4000mA
- Maximum 12 hours for charging; 4 hours for
continuous working
- Electric specification: A.C220±22v, D.C 12V,
50Hz±1Hz
- Power: <70VA

Trend Time
- Trend graph: 120 Hours of trend graph storage recall
and print
- Data recall & print function: 200 groups parameter
alarm recall &print
200 groups Arrhythmia alarm recall &print
2000 groups NIBP recall & print
- Data power-off protection

Alarm
- User-adjustable High and Low limits audible and visual
alarm

Networking
- Connected to central monitoring system

Recorder
- Built-in, thermal array
- Waveform: 2 channels
- Record mode: manual, on alarm, time -defined, etc
- Paper width: 48mm
- Print speed: 25mm/s, 50mm/s

Record type:
- Consecutive real-time record, Automatic record,
Parameter alarm record, freeze Waveform record,
Review and Saving, Trend Review

Internal Modules
- Individual Modules
- ECG module, SpO2 module, NIBP module, Main
control module and Power supply module.

Operation Environment
- Power: AC100-250V, 50/60Hz.
- Temperature: 5-40℃
- Humidity: 15-85%
- Patient Range: Adult, Pediatric, Neonate

ECG
- 12-leads ECG Analysis
Heart Rate Range
Adult: 15-300bpm
Pediatric/Neonate:15-350bpm
Accuracy: ±1% or ±1 bpm (whichever is greater)
Resolution :1 bpm
- ECG Enlarge width
MON: 0.5-40Hz
DIA: 0.05-130Hz
OPE: 1-20Hz
- Lead selection: 5 Lead and 3 lead selectable
5 lead: RA; LA; RL; LL; V or R; L; N; F; C
3 lead: RA; LA; LL or R; L; F
Lead selection: 12-Lead I; II; III; aVR; aVL;aVF; V1-V6.
5-lead: I; II; III; aVR; aVL
3-lead: I; II; III
ECG waveform: 2 channels
- ST SEGMENT detection: -2.0mV - +2.0Mv (Automatic)
- Arrhythmia analysis: Yes
- Electrode desquamated indicator: Voice & light indication
- Gain selection : ×1/4,×1/2 ,×1,×2,Auto
- Sweep speed: 12.5mm/s, 25mm/s, 50mm/s
- HR alarming time: ≤ 12s
- PR from ECG
Adult: 15-300bpm
Pediatric/Neonate: 15-350bpm
- ECG noise level: ≤ 30 uV (P-P value)
- ECG input loop current: Ua
- Input impedance: 5 MΩ
- CMRR : ≥105 Db
- Time constant
Monitoring mode ≥0.3s
Diagnostics Mode≥3.2s
- Anti-jamming: line frequency, electrosurgical interference
and defibrillation
- Arrhythmia Analysis and pacemaker detection
- ECG cable
Standard configuration ECG cable for Adult
Standard two ECG cables to support 12 leads ECG
analysis
- Alarm setting: Adjustable from lower to upper and
automatic memory
- Waveform: Standard 12-ECG waveforms

Masimo-SpO2
- Measurement Range:0% to 100%
- Resolution:1%
- Accuracy: 70% to 100%:±2%(adult/pediatric,non-motion
conditions)
70% to 100%:±3%(neonate,non-motion conditions)
70% to 100%:±3%(motion conditions)
0% to 69%, unspecified

PR
- Measurement Range:25bpm to 240bpm
- Accuracy: ±3bpm(non-motion conditions)
±5bpm(motion conditions)
- Resolution:1bpm

NIBP
- Measurement method: Automatic vibration
- Measurement types: Systolic, Diastolic, Mean
- Work mode: Manual / Automatic/Continuous
- Auto measurement time: Adjustable 1min-480min
- Measurement unit: mmHg / Kpa selectable
- Measurement range: 10-270mmHg

Adult/Pediatric Mode:
Systolic pressure 60~240mmHg
Diastolic pressure 30-190mmHg
Mean pressure 40-210mmHg
Neonatal Mode:
Systolic pressure 25-135mmHg
Diastolic pressure 12-110mmHg
Mean pressure 18-120mmHg
- Alarm type: Systolic pressure, Diastolic pressure, Mean

pressure
- Accuracy:±5mmHg
- NIBP pressure range: 0-300 mmHg
- PR from NIBP: Measurement 40-240bpm
- Over-pressure protection :
Hardware and software both over pressure protection
300 mmHg is the max pressure.
Higher than the above pressure, the safety valve deflate
automatically

NIBP Cuff:
- Standard - Adult NIBP cuff ;
- Optional - Pediatric NIBP cuff , Neonatal NIBP cuff

Alarm Setting: Adjustable from lower to upper and automatic
memory

IBP
- Measurement Mode: Pressure Transducer
- Measurement Types: Systolic, Diastolic, Mean
- Channel: 2 channel
- Pressure names: AVP, CVP, PAR, LAP, RAP, ICP
- Measurement Range: -30mmHg~300mmHg
- IBP Accuracy: 0~100mmHg ±4mmHg
- 100mmHg~300mmHg ±2%
- Pulse Accuracy: ±1% or ±1bpm, whichever is greater
- Calibration Mode: Zero Calibration
- Standard: US Abbott/Medex IBP accessories

Dual TEMP
- Measurement range: 0-50℃
- Channel: T1, T2, TD (Temperature Difference)
- Resolution: 0.1℃
- Accuracy: ±0.1℃(exclusive of error of sensor)
- Measurement unit: ℃ / F selectable

Recommend Products

NEC8

Finger Pulse Oximeter
· Integrated with SpO2 probe and processing display module · Small in volume, light in weight and convenient in carrying · Operation of the product is simple, low power consumption · SpO2 value display · Pulse rate value display, bar graph display · Pulse waveform display · The display mode can be changed

SE1208

12-Channel ECG Machine * Splendid 10” color TFT with Alpha-numeric keyboard *Simultaneous 12 leads of ECG printing(Roll or Z-fold) *Multiple USB port for connecting PC-ECG software and external printer * Excellent ECG auto-interpretation program and Pacemaker detection * Reliable and fas Network Connectivity and data transmission

JRT200

Thermometer
* LCD display
* Adopts the latest infrared technology
* Non-contact design
* High temp alarm
* Double mode, can be used to measure the temperature of human body and object surface.
* Just 1 second can measure out the body temperature,Fast & accurate reading within 1 second.
Packing & Delivery
Working Environment:
Operating temperature:0~+40℃
Storage temperature:-20℃ to +50℃
Operating humisity:15% to 85%(non condensing)
Storage humidity :10% to 93%(non condensing)
Operating atmospheric pressure:860hPa to 1060hPa
Storage atmospheric pressure:500hPa to 1060hPa

Certification： IEC60601-1 Approved, CE marking according to MDD93/42/EEC
Package included: 1 mTouch 8 Full Touch Screen Patient Monitor
1 Adult Reusable Finger clip SpO2 Sensor
1 SpO2 Extension Cable 1 ECG 5-Lead Cable
1 Adult Reusable NIBP Cuff
1 Adult Reusable NIBP Tube
1 Built-in Battery (Lithium battery)
10 ECG disposable electrodes
1Temperature Probe Skin
1 Power Cable

Optional parameter& configuration of mTouch 8 :
2-IBP, EtCO2 (Sidestream (Microstream), Mainstream), Multigas/O2,12-Lead ECG,
Masimo SpO2, Nellcor SpO2, CO, Thermal recorder, USB/SD Memory BIS, Wireless Module

Company Profile
Sino-Hero (Shenzhen) Bio-Medical Electronics Co., Ltd, founded in 2003, is one of the leading manufactures for medical devices and medical accessories in China. We are firmly committed to excellence of professional service, product quality and striving for maximal mutual win-win partnership. Sino-Hero has and will continue to put on a great deal of efforts to work towards utmost success mutually with our partners. We are customer-centric and dedicated and want to and work towards being right choice to our worldwide distributors. With years of endless efforts, we have enjoyed growth and continuous success in the international market.

SINOHERO's excellent advantages for our valuable international distributors, including: - To offer the most competitive offer to our distributors, not only the best price in the market, but also the most cost-effective products with high quality and reliability - Excellent distribution opportunity to all major markets now is available, we are committed to give our valuable distributors maximal market protection and grow together - Most responsive and efficient service support to your distributors, we offer extended warranty policy on our products, you will enjoy peace of mind - More new products will be in the market and available for our distributors in the following days.

SINO-HERO business activities focus on product lines below:
1) A wide range of versatile Patient Monitors suitable for all hospital setting, including OR, ER, Recovery Room, General Patient ward
2)Monitoring Accessories maximal compatibility for all major brands (GE, Philips, Schiller, Collin, CSI, Critikon, Nihon Kohden, etc.): including, Reusable Spo2 Sensor & Ext-Cable, ECG cable, EKG cable, NIBP cuff, Air-hose, Temp probe
3) ECG machine and its accessories
4) Infusion pump and Syringe Pump system
5) Obstetrical product: Fetal Doppler, Colposcope
6) Medical Imaging Systems:Color Ultrasound Scanner, Portable Ultrasound System
7) A wide range of compatible ultrasound probes and repairable ultrasound probes.

Thank you for your trust and support, we will continue to provide you with quality productand service sinserely.

Certifications
FAQ
1.Who we are? Where we are from? Where we service?
We are Sino-Hero (Shenzhen) Bio-Medical Electronics Co., Ltd, founded in 2003, is one of the leading manufactures for medical devices and medical accessories in China. We are based in Shenzhen,Guangdong, China, start from 2004, WE service more than 100 country： Northern Europe(10.00%),Western Europe(10.00%),EasternAsia(10.00%),South Asia(10.00%),Southern Europe(10.00%),Southeast Asia(10.00%),Eastern Europe(10.00%),South America(10.00%),North America(10.00%),Mid East(5.00%),Africa(5.00%). There are total about 11-50 people in our office. 2.What we have?How can we guarantee quality?
We are professional in medical more than 16 Years,We have TUV CE a& ISO13485 Certifications for our products. All of our items Always a pre-production sample before mass production; All items get 100% checking before in our stock; Always final Inspection before shipment. 3.What items we could provide for you? SINO-HERO business activities focus on product lines below: 1) A wide range of versatile Patient Monitors suitable for all hospital setting, including OR, ER, Recovery Room, General Patient ward 2)Monitoring Accessories maximal compatibility for all major brands (GE, Philips, Schiller, Collin, CSI, Critikon, Nihon Kohden, etc.): including, Reusable Spo2 Sensor & Ext-Cable, ECG cable, EKG cable, NIBP cuff, Air-hose, Temp probe 3) ECG machine and its accessories 4) Infusion pump and Syringe Pump system 5) Obstetrical product: Fetal Doppler, Colposcope 6) Medical Imaging Systems:Color Ultrasound Scanner, Portable Ultrasound System 7) A wide range of compatible ultrasound probes and repairable ultrasound probes. 4. Why should you buy from us not from other suppliers? SINHERO’s products are installed in over 50 countries, including US, UK, Germany, France, Italy, Spain, etc. and the percentage of total sales from Europe has been growing fast. The main competitive advantages of SINOHERO’s products: a. quality b. functionality c. easy maintenance and easy to operate d. spare parts and consumables at low cost e. on-time delivery f. strong after sales technical support 5. What services we Can provide for you? We could provide items with Ready to ship,we also could do OEM,ODM orders,we also welcome you to be our Brand Sinohero Agent to work together with us; Accepted Delivery Terms: FOB,CIF,EXW,DDU,Express Delivery； Accepted Payment Currency: USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY; Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash,Escrow; Language Spoken: English,Chinese,Spanish,German,French,Russian
Contect us
Geadviseerde Producten
Neem contact op met ons
Contactpersoon : Maggie
Resterend aantal tekens(20/3000)
Neem contact op
Verdieping 6, Bldg. 15, nr. 987, ChuLeng Olympic Garden, Ningbo, Zhejiang, China
Over
Bedrijfsprofiel Fabrieksreis Kwaliteitscontrole Contacteer ons
Producten
Meerdere parameters voor de patiëntbewakingPatiëntmonitor op de ICveterinaire geduldige monitor Alle categorieën
Mail ons
Laat ons uw vereiste weten. We zullen de beste producten met u verbinden.
Sitemap │ Mobiele site │ Privacybeleid
China Goed Kwaliteit Meerdere parameters voor de patiëntbewaking Leverancier. © 2022 - 2024 patientsmonitors.com. All Rights Reserved.
