Monitor For This Patient Certified Emergency Medical Equipment Vital Sign Monitor CE ISO Approved Medical Portable Multi Parameter Patient Monitor

2.0 Pieces
MOQ
Monitor For This Patient Certified Emergency Medical Equipment Vital Sign Monitor CE ISO Approved Medical Portable Multi Parameter Patient Monitor
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Model Number: H8
Power Source: Electricity
Warranty: 1 Year
After-sale Service: Online technical support
Material: Plastic
Shelf Life: 1years
Quality Certification: ce
Instrument classification: Class II
Safety standard: EN 149 -2001+A1-2009
Product name: Patient Monitor
Certificering: CE ISO
Accuracy: 99.5%
Function: Monitor for patient
Memory: Memory Stores Minimum190000 Results
Language version: 18 Languges Optional
Color: White
Display: LCD
Basis informatie
Certificering: ce, CE ISO
Model Number: H8
Betalen & Verzenden Algemene voorwaarden
Packaging Details: 1 Adult Reusable Finger clip SpO2 Sensor 1 ECG 5-Lead Cable, Snap end 1 Adult Reusable NIBP Cuff 1 Adult Reusable NIBP Tube 1 Built-in Battery (Lithium battery) 10 ECG disposable electrodes 1 Temperature Probe Skin 1 Power Cable
Productomschrijving
Product Description

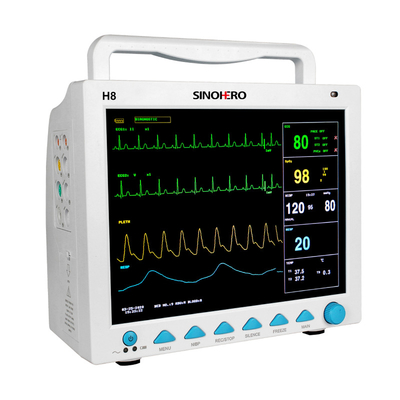

Emergency Medical Equipment Vital Sign Monitor SINOHERO H8 Handheld Patient Monitor with Touch Screen ● Introduction: H8 is a 12.1'' Multi-Parameter Patient Monitor，The monitor has abundant functions that can be used for clinical monitoring with adult, pediatric and neonate. Users may select different parameter configuration according to different requirements. The monitor, power supplied by 100-240V～,50/60Hz, adopts 12.1'' color TFT LCD displaying real-time date and waveform. It can synchronously display eight-channel waveform and full monitoring parameters equipped with an optional 48mm thermal recorder. The monitor can be connected to the central monitoring system via wire or wireless network to form a network monitoring system. This device can monitor such parameters as ECG, RESP, NIBP, SpO2, and dual-channel TEMP, etc. It integrates parameter measurement module, display and recorder in one device to form a compact and portable equipment. Its replaceable internal battery brings lot of convenient for patient moving.

●Features:
1)12.1'' TFT color LCD, multi-language interface(Simplified Chinese, Traditional Chinese, English, French, German, Turkish, Spanish, Portuguese, Italian, Dutch, Romanian, Russian, Kazakh, Polish, Czech). 2)Fanless design, quiet, energy-saving and clean, which reduces the possibility of cross-infection. 3)All-round monitor for adult, pediatric and neonate. 4)With standard interface, oxygen graph, trend graph, big character interface and view bed, convenient to observe. 5)Finish all operations by keys and knobs. 6)Maximum 8-channel waveform synchronous display. 7)Display 7-lead ECG waveform on one screen, cascade ECG waveform display 8)Adopt digital SpO2 technology, anti-motion and anti-ambient light interference, and measurement can be performed under the circumstance of weak filling. 9)Heart rate variability (HRV) analysis function 10)NIBP measurement mode: Manual/AUTO/STAT, storage for 4800-group NIBP data. 11)Review for 71 alarm events of all parameters and 60 arrhythmia alarm events. 12)Drug concentration calculation and titration table functions. 13)One-touch printing of trend graph 14)Connect to Central Monitoring System by 3G, Wi-Fi or wired mode. 15)AC/DC, built-in rechargeable lithium battery achieve uninterrupted monitoring. 16)Anti-high frequency surgical unit, defibrillation-proof (special leads are necessary).
Performance
● Performance:
H8 Portable Patient Monitor  Basic 6 parameters (ECG, RESP, NIBP, TEMP, RESP) to reach general clinical needs  Bright 12.1" TFT display, easy to view  Arrhythmia and ST analysis to provide rapid cardiac diagnosis  Up to 72-hour trend to review previous patient data  Drug calculation and titration, useful clinical tools Standard Configuration: ECG, HR, RESP, SpO2, NIBP, 1-TEMP, Lithium battery Optional Configuration: 2-TEMP, Thermal recorder Technical Specifications of H8 Size and Weight -Size:318mm×264mm×152mm -Weight: 4.5kg Power supply -Power Voltage: AC 100-240V 50/60Hz -Power Input: ≦85VA -Safety class: Category I Display -12.1〞 Color TFT display -Resolution:800x600 pixels or higher Battery -Type: Rechargeable Lithium battery -Operating time under the normal use and full charge:≧120minutes Thermal Recorder -Method: Thermal dot array -Paper width:50mm(1.97 in) -Paper Speed:12.5/25/50(single track or tri-track mm/sec) -Traces: Single track or Tri-track Alarm -Three Levels: Low, medium and high -Indication: Auditory and visual -Setup: Default and custom -Silence: All alarm can be silenced -Volume: 45-85 dB measured at 1 meter Storage & Reviewing -Trend: 96-hour tabular and graphic trends & data storage -Alarm: 1000 groups alarm events reviewing -NIBP: Up to 2400 groups NIBP measurements data ECG -Lead mode: 5-lead or 3-lead selectable - Lead selection: I;II;III; avR; avL; avF; Vx; CAL - Sweep speed: 12.5 mm/s, 25mm/s, 50mm/s - Accuracy: ± 1bpm or ± 1%, whichever is greater - Heart beat range: Adult: 15~300 bpm Pediatric/Neonatal: 15~350 bpm HR -Range: Adult 10～300bpm - Pediatric & Neonate:10～350bpm -Refreshing time:≦50 bpm Per2 pulses - 50～120bpm per 4 pulses - ≧120bpm per 6 pulses -Resolution: 1bpm -Accuracy:±1% or ±1bpm,whichever is greater ST segment -Measurement range:-2.0mV～2.0mV -Resolution:0.01mV RESP -Method: RA-LL impedance -Measurement range: Adult: 0~120rpm Pediatric/neonatal: 0~150rpm - Apnea alarm: YES NIBP -Method: Automatic oscillometry -Range of measurement: Adult: 10～270mmHg Child: 10～235mmHg Neonate: 10～135mmHg -Accuracy: Static:±2% or ±3mmHg,whichecer is greater -Unit: mmHg, kPa -Over-pressure protection: YES Standard SpO2（Digital） -Measurement Range:0～100% -Accuracy: At70～100%,±2% At0～69%,unspecified
PR -Measurement Range:25～250bpm -Accuracy: ±1% or ±1bpm,whichever is greater TEMP -Measurement Range: 25.0℃～50.0℃ -Accuracy: ±0.2℃ (exclusive of probe) -Unit: Celsius(℃),Fahrenheit(℉) -Connecting cable: Compatible with YSI-400 serial Environment -Operating temperature:0~+40℃ -Transportation and Storage temperature:-20℃ to +50℃ -Relative humisity:Working≦85% Transportation and storage ≦93% -Atmospheric pressure:860hPa to 1060hPa Transportation and storage 500-1060 hPa Standard configuration of H8: ECG, HR, RESP, SpO2, NIBP, 1-TEMP, Lithium Battery Optional parameter& configuration of H8: 2-TEMP, Thermal recorder

Optional: Thermal Recorder，2-IBP，SideStream/MainStream EtCO2，2-Temp，Full Touch Screen，Wall Mount，Moving Cart Full Set
Recommend Products

ECG SE509

3-Channel ECG Machine
* 4.3” Vivid color Full Touch Screen * 12 Leads ECG simultaneous acquisition and display * Innovative digital filters&anti-noise technology * Built-in high resolution thermal printer with various 3-channel report printing * Both SD and USB memory enlarge available

ECG SE1208

12-Channel Electrocardiograph * Splendid 10” color TFT with Alpha-numeric keyboard *Simultaneous 12 leads of ECG printing(Roll or Z-fold) *Multiple USB port for connecting PC-ECG software and external printer * Excellent ECG auto-interpretation program and Pacemaker detection * Reliable and fas Network Connectivity and data transmission

ECG SE1200 Lite

3-Channel ECG Machine
* Sharp and clear 3.5" inch TFT screen
* 12 lead ECG simultaneously display
* Built-in database and store more than 1000 pieces of ECG data
* Auto-measurement, auto-analysis and auto interpretation functions
* Both AC and DC power supply with built-in lithium rechargeable battery
Packing & Delivery
Package included: 1 Adult Reusable Finger clip SpO2 Sensor 1 ECG 5-Lead Cable, Snap end 1 Adult Reusable NIBP Cuff 1 Adult Reusable NIBP Tube 1 Built-in Battery (Lithium battery) 10 ECG disposable electrodes 1 Temperature Probe Skin 1 Power Cable

Physical Identity Machine Size: L*W*H 31.8×26.4×15.2cm Pack Size: L*W*H 41*40*40cm Net Weight: 5kgs Gross Weight: 6.5kgs
