Hospital ICU Rescue Treatment First Aid Rescue Operation Animal Quality 12 Inch Accurate Medical Patient Monitor CE EtcO2 Parameter Multi Language Multi Language Data For Hospital ICU

1 piece
MOQ
Hospital ICU Rescue Treatment First Aid Rescue Operation Animal Quality 12 Inch Accurate Medical Patient Monitor CE EtcO2 Parameter Multi Language Multi Language Data For Hospital ICU
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Model Number: JR2000D
Power Source: Electricity
Warranty: 1 Year
After-sale Service: Online technical support
Power Supply Mode: Built-in Battery
Material: Metal, Plastic, Resin
Shelf Life: 5 Years
Quality Certification: CE/ISO/CMD
Instrument classification: Class II
Safety standard: EN 149 -2001+A1-2009

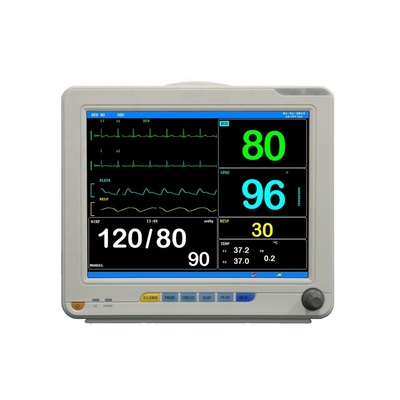

Product name: Medical Patient Monitor
Function: RESP, ECG, SpO2, PR, NIBP, TEMP,EtCO2, 2IBP, 2Temp
Application: Hospital ICU Emergency Treatment First-aid Rescue Operation Animal
Display: 12'' TFT Color LCD Screen
Weight: 3.5Kg
Size: 40cm(15.7'') x 27.5cm(10.8'') x 35.7cm(14.0'')
Power supply: Built-in Rechargeable Lithium Battery
Certificate: CE/ ISO9001/ ISO13485/ CMD
Basis informatie
Certificering: CE/ISO/CMD, CE/ ISO9001/ ISO13485/ CMD
Model Number: JR2000D
Betalen & Verzenden Algemene voorwaarden
Packaging Details: Each Unit Is Packed Into One Carton
Productomschrijving
Product Description
The Monitor Is Applicable for Clinical Monitoring in Operating Room, Postoperative Observation Room, ICU/CCU Ward, Emergency Room, Outdoor First Aid And Rescue And Other Needs, Etc. of Adult, Pediatric And Neonate. The Patient's Vital Parameters (RESP, ECG, SpO2, PR, NIBP, TEMP, Etc.. EtCO2, 2IBP, 2Temp, Etc Are Optional.) Can Be Monitored. Monitored Information Can Be Displayed, Stored, Reviewed, Printed.
Specification
ADVANCED FEATURES

1) 12.1 Inch, TFT Color LCD Screen; Easy And Convenient to Operate, Elegant And Concise In Appearance; 2) Support English, Chinese, Portuguese, Russian, Turkish, Spanish, French, Switch at Will to Meet The Needs of Different Groups of People; 3) Abundant Analysis Functions, 72~720 Hours of Large-capacity Table And Graph Trend Information Storage, Easy to Call; Real-time S_T Segment Analysis, Pacemaker Detection; 4) 15-type Drug Calculation And Titration Table, Convenient for Clinical Control of Anesthetic Drug Dosage; 5) 13 Kinds of Arrhythmia Analysis, Multi-lead ECG Waveform In-phase Display, More Intuitive Judgment of The Patient's Cardiac Activity; 6) Adopt High-performance Processor, Stable, Reliable And Fast to Process Information. Blood Oxygen SpO2 Can Detect 0.1% (low Perfusion) Weak, High Accuracy; 7) NIBP Double Overvoltage Protection, Temperature Drift Control And Other Technical Measures Reduce Risks, Ensure The Accuracy of Measurement Data In Harsh Environments, And Ensure Patient Safety; 8) Fully Isolated Floating, ECG Anti-defibrillation Protection, Effectively Resisting The Interference of Defibrillators And Electrocautery Anti-ESU, RA-LL Impedance Breathing; 9) Unique Respiration Measurement Technology, Real-time Monitoring of Patient's Breathing Movement, Intelligent Filter Design More Effectively Eliminates External Interference; 10) Built-in Rechargeable Lithium Battery, AC And DC Dual-purpose Power Supply, Up to 4 ~ 5 Hours of Using Time, Easy to Carry Out And Use During Power Outages.

PARAMETERS

ECG Lead Mode: 5 Leads ( R, L, F, N, C or RA, LA, LL, RL,V) Lead Selection: I, II, III, avR, avL, avF, V, Waveform: 3 ch Lead Mode: 3 Leads ( R, L, F or RA, LA, LL) Lead Selection: I, II, III Waveform: 1 ch Gain: x2.5mm/mV, x5.0mm/mV, x10mm/mV, x20mm/mV, Auto
Respiration Method: Impedance Between R-F(RA-LL) Differential Input Impedance: >2.5 MΩ Measuring Impedance Range: 0.3~5.0Ω Base line Impedance Range: 0 ~ 2.5 KΩ Bandwidth: 0.3 ~ 2.5 Hz Resp. Rate Measuring and Alarm Range Adult: 0 ~ 120 rpm Neo/Ped: 0 ~ 150 rpm Resolution: 1 rpm Accuracy: ±2 rpm Apean Alarm: 10 ~ 40 S NIBP Method: Oscillometric Mode: Manual, Auto, STAT Measuring Interval in AUTO Mode: 1, 2, 3, 4, 5, 10, 15, 30, 60, 90, 120, 180, 240,480 (Min) Measuring Period in STAT Mode: 5 Min Pulse Rate Range: 40 ~ 240 bpm Alarm Type: SYS, DIA, MEAN Measuring And Aarm Range -- Adult Mode SYS: 40 ~ 270 mmHg DIA: 10 ~ 215 mmHg MEAN: 20 ~ 235 mmHg -- Pediatric Mode SYS: 40 ~ 200 mmHg DIA: 10 ~ 150 mmHg MEAN:20 ~ 165 mmHg -- Neonatal Mode SYS: 40 ~ 135 mmHg DIA:10 ~ 100 mmHg MEAN:20 ~ 110 mmHg Resolution Pressure:1mmHg Accuracy Pressure -- Maximum Mean error: ±5mmHg -- Maximum Standard deviation: ±8mmHg Overpressure Protection -- Adult Mode: 297±3 mmHg -- Pediatric Mode: 240±3 mmHg -- Neonatal Mode: 147±3 mmHg SpO2 Measuring Range: 0 ~ 100 % Alarm Range: 0 ~ 100 % Resolution: 1 % Accuracy: 70% ~ 100% ± 2 %; 0% ~ 69% unspecified Actualization interval: About 1 Sec. Alarm Delay: 10 Sec. Pulse Rate Measuring and Alarm Range: 20~300bpm Resolution: 1bpm Accuracy: 2bpm TEMP Channel: 2 Measuring and Alarm Range: 0 ~ 50 ℃ Resolution: 0.1℃ Accuracy: ±0.1℃ Actualization interval: About 1 Sec. Average Time Constant: <10 Sec.

More Parameter, Pleace Contact Us.

PACKAGE LISTING

1) Patient Monitor Main Unit (Battery Included) 2) 5-lead ECG Cable 3) Adult NIBP Cuff 4) NIBP Extension Tube (2m） 5) Adult SpO2 Sensor (2m) 6) Skin Temperature Probe 7) AC Power Adapter 8) Electrode 9) User Manual Accessory Optional: EtCO2/ Touch Screen/ 2IBP/ 2Temp/ 1 PC extra rechargeable battery/ Animal version/ Wall mounted / Trolley/ Printer/ WIFI/ HD-MI/ Pediatric and Neonate accessory

OTHERS

Place of Origin
China
Brand Name
JERRY MED
Model Number
JR2000D
Material
Metal, Plastic, Resin
Shelf Life
1 years
Quality Certification
CE/ISO/CMD
Product name
Medical Patient Monitor
Function
RESP, ECG, SpO2, PR, NIBP, TEMP,EtCO2, 2IBP, 2Temp
Application
Hospital ICU Emergency Treatment First-aid Rescue Operation Animal
Display
12'' TFT Color LCD Screen
Weight
3.5Kg
Size
40cm(15.7'') x 27.5cm(10.8'') x 35.7cm(14.0'')
Power supply
Built-in Rechargeable Lithium Battery
Certificate
CE/ ISO9001/ ISO13485/ CMD
Packing & Delivery
PACKING

We Also Support Custom Packaging, Please Consult Our Professional Sales For Details.
DELIVERY

For The Order Which Less Than 20 Units, More Of The Customers Choose The Shipment By Express Courier Or By Air Cargo. Our Normal Lead Time Is Within 5-7 Working Days After Payment.
Company Profile
Jerry Medical was founded in 1988, industry and trade integration, focusing on research, manufacture and distribution of medical instruments.
JERRY MED was dedicating to research, manufacture and distribution of medical devices Pulse Oximeter, Patient Monitor. Now we have developed more than 20-types products contained to meet different costumer needs.
Over the years, we have traveled all over the world and participated in various exhibitions, in the United States, Spain, Germany, Turkey, Brazil, the Philippines, India,etc. our products and services have been recognized by new and old customers.
At present, JERRY MED produces and distributes more than 1500000 products per year, which were distributed to over 120 countries and regions.
Certifications
FAQ
1. WHO ARE WE?

We are based in Shanxi, China, start from 1998,sell to South Asia(7.69%),Southern Europe(7.69%),Northern Europe(7.69%),Central America(7.69%),Western Europe(7.69%),Eastern Asia(7.69%),Mid East(7.69%),Oceania(7.69%),Africa(7.69%),Southeast Asia(7.69%),Eastern Europe(7.69%),South America(7.69%),North America(7.69%). There are total about 11-50 people in our office.

2. HOW CAN WE GUARANTEE QUALITY?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.WHAT CAN YOU BUY FROM US?
Patient monitor,pulse oximeter,medical instrument,Vital Signs Patient Monitor,NIBP and SPO2 patient monitor

4. WHY SHOULD YOU BUY FROM US NOT FROM OTHER SUPPLIERS?
Jerry Medical is a specialized medical equipment manufacturer and exporter, which was founded in 1998. Our product scope includes patient monitor and pulse oximeter series mainly, they have got certification with CE, ISO 13485 and ISO 9001.

5. WHAT SERVICES CAN WE PROVIDE?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CPT；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
